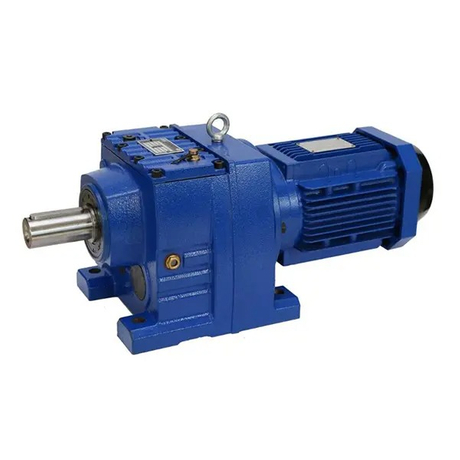

Why Choose A Helical Gear Motor for Quiet And Reliable Power Transmission

Industrial power transmission demands uncompromising precision and reliability. Relying on outdated or mismatched components often leads to catastrophic machinery downtime and lost production revenue. Equipment failures, excessive factory noise, and premature wear in high-speed applications regularly stem from poorly specified systems. These mechanical issues introduce severe compliance risks, particularly concerning strict OSHA workplace noise regulations.

Upgrading your machinery to a Helical gear motor offers a mathematically proven method to slash both vibration and noise. However, successfully executing this upgrade requires carefully calculating the trade-offs in upfront component costs and axial spatial constraints. This guide provides mechanical engineers, procurement managers, and plant operators with a highly actionable, evidence-based evaluation framework. You will learn exactly how to analyze your specific load, speed, and spatial requirements to determine if this transmission technology represents the right engineering investment.

Key Takeaways

  • Noise Reduction: Achieves operational noise levels of 65–78 dB even at >3000 RPM, compared to 85–95+ dB for standard spur gears.

  • Load Distribution: Features a contact ratio greater than 2.0 and an overlap ratio >1, allowing multiple teeth to share torque and prevent sudden point-load failures.

  • Cost Reality: Initial setup costs are typically 30–40% higher due to the mandatory integration of thrust bearings to handle axial loads.

  • Efficiency: Maintains high transmission efficiency (98.0%–99.5%) but requires precise thermal management due to sliding friction.

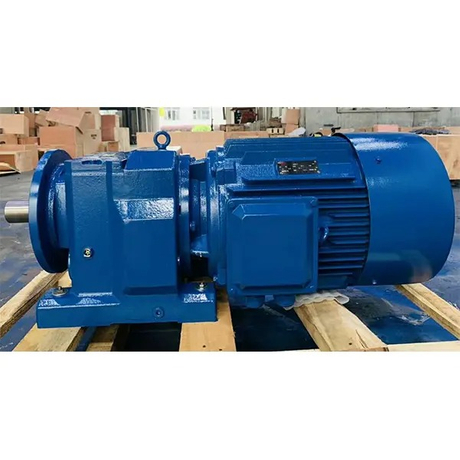

The Engineering Behind the Silence: How Helical Gear Motors Work

Progressive Engagement vs. Instantaneous Impact

Understanding advanced gear mechanics begins by closely examining tooth engagement profiles. Standard spur gears rely entirely on instantaneous full-line contact. Their parallel teeth smash together abruptly during operation. This sudden mechanical impact creates a notoriously low contact ratio, usually hovering between 1.2 and 1.6. It generates severe shock loads, intense vibration, and destructive noise, especially at higher operational speeds.

Conversely, a Helical gear motor operates using a fundamentally different physical principle. The angled teeth engage progressively through a diagonal point-contact motion. As the gear turns, the contact line sweeps smoothly across the tooth face. This progressive rolling action easily achieves a contact ratio greater than 2.0.

The core engineering secret lies in the strict "Overlap Ratio > 1" rule. When the geometric overlap ratio exceeds 1.0, multiple teeth continuously share the input torque simultaneously. This undeniable mathematical reality effectively eliminates destructive torque ripple. It prevents sudden point-load mechanical shocks, allowing the system to run exceptionally quietly even under massive strain.

Helix Angle Dynamics

The designated helix angle dictates these performance dynamics entirely. Gear manufacturers typically cut industrial helical profiles at angles ranging between 15° and 45°. Industry standards heavily favor 20° as the ultimate commercial sweet spot. This specific angle provides an optimal engineering compromise.

A 20° angle delivers remarkably quiet and smooth operation while keeping the generated axial thrust forces highly manageable. Steeper angles, approaching 45°, reduce operational noise even further. However, they drastically increase the detrimental axial forces pushing laterally against the shaft bearings. Engineers must carefully balance these angled dynamics against their available bearing capacity.

Performance Benchmarks: Helical vs. Alternative Gear Motors

Engineers must evaluate transmission types based on specific, rigid application demands. You should avoid falling for overly simplified "one size fits all" marketing claims. We constructed the following evaluation matrix to clarify optimal use cases across different technologies.

Comparison Metric

Helical Gear

Spur Gear

Worm Gear

Spiral Bevel Gear

Max Operating Speed

> 3000 RPM

< 1000 RPM

< 1500 RPM

> 3000 RPM

Noise Generation

Very Low (65–78 dB)

High (85–95+ dB)

Moderate

Low to Moderate

Axial Thrust

High (Needs thrust bearings)

None

High

High

Peak Efficiency

98.0% – 99.5%

98.0% – 99.5%

50.0% – 90.0%

98.0% – 99.0%

Helical vs. Spur Gear Motors

For high speed and strict noise control, helical designs dominate the category. They handle rotational speeds exceeding 1000 RPM effortlessly. Spur gears become incredibly loud and mechanically unviable past this crucial 1000 RPM threshold. Conversely, spur gears win decisively on budget and mechanical simplicity. They utilize pure rolling friction. They produce zero axial thrust, which vastly simplifies the overall bearing design and housing structure.

Helical vs. Worm Gearboxes

When evaluating torque output and energy efficiency, helical systems heavily outperform traditional worm drives. This performance gap becomes obvious in high-torque, continuous-duty scenarios. For example, pushing a 10HP load at a 30:1 reduction ratio works flawlessly for helical units. They experience significantly lower surface friction wear. However, worm gears win whenever engineers face severe spatial constraints. Their compact right-angle footprint and inherent anti-reversing (self-locking) physical traits make them ideal for vertical lifting machinery.

Helical vs. Bevel (Spiral) Gears

Choosing between these two technologies relies primarily on your required shaft configuration. You should specify a helical system as the absolute default for parallel shafts. Spiral bevel gears become structurally mandatory for 90-degree intersecting shaft designs. Efficiency levels remain closely matched between the two. A high-quality helical drive holds a slight edge, consistently delivering 98.0% to 99.5% efficiency. Spiral bevel units typically max out between 98.0% and 99.0%.

Implementation Realities, Hidden Costs, and Risks (The Trust Factor)

Upgrading your transmission architecture introduces unyielding physical realities. You must proactively account for specific mechanical design penalties before issuing purchase orders.

The Axial Thrust Penalty

The angled tooth design creates an unavoidable physical reaction. The active helix angle actively pushes the gear axially along the transmission shaft during high-speed operation. To safely counteract this destructive lateral force, you must specify and install heavy-duty thrust bearings. Tapered roller bearings frequently serve this exact purpose. This mandatory implementation requirement typically drives up your local component costs by 30% to 40%.

Spatial Constraints

Integrating robust thrust bearings immediately changes the overall physical footprint of your machinery. Helical systems generally require 15% to 25% more axial assembly space compared to basic spur units. You must accommodate both the larger bearing packages and the structurally reinforced metal housing required to absorb continuous axial loads safely.

Thermal and Lubrication Management

Helical gears introduce internal sliding friction alongside standard rolling friction. This aggressive sliding action generates excess heat. You must utilize specialized Extreme Pressure (EP) additive lubricants. Compounds containing active sulfur-phosphorus molecules prevent rapid thermal degradation. They also mitigate horsepower loss at extreme rotational speeds.

Thermal expansion poses another hidden mechanical risk. Differential expansion rates in dissimilar metallic components can easily alter your precise center-to-center meshing distance. If ignored, thermal expansion destroys gear teeth rapidly and voids operational warranties.

Material Selection and Durability Factors for Specifying

Specifying the correct raw material prevents catastrophic premature wear. You must match the alloy directly to your expected operational load and environmental conditions.

Load-Based Alloy Matching

  • Heavy-Duty and High-Shock Loads: Select premium carburized and hardened steels. Alloys like AISI 8620 and AISI 9310 excel in these extreme environments. They offer a highly hardened outer case paired with a ductile core. This combination absorbs massive mechanical impacts without brittle fracturing.

  • Medium and Consistent Loads: Choose high-tensile through-hardened steels. Materials like AISI 4140 and AISI 4340 offer the perfect engineering balance of shear strength and raw machinability.

  • Low-Load and Ultra-Quiet Needs: Utilize advanced engineering polymers. Synthetic materials like Delrin and Nylon work flawlessly for high-speed food-grade machinery or sterile clean-room applications where external lubrication remains prohibited.

Advanced Surface Treatments

Beyond selecting raw base materials, advanced surface treatments offer massive operational performance gains. Consider the strong return on investment provided by modern surface hardening processes. Physical Vapor Deposition (PVD) or advanced carbon-based coatings drastically improve gear longevity.

These microscopic protective layers serve a critical function. They can reduce sliding friction power loss by up to 27%. Coating technologies like Titanium Nitride (TiN) or Diamond-Like Carbon (DLC) keep the transmission system cool and highly efficient under heavy continuous stress.

The Buyer's Decision Framework (When to Shortlist Helical)

Procurement teams and design engineers need rigid operational guidelines to avoid severe overspending. Use this explicit IF/THEN shortlisting logic when evaluating your mechanical options.

Establish a Rigid IF/THEN Shortlisting Logic

  1. Criteria 1 (Speed & Noise): IF the application runs consistently above 1000 RPM AND strict environmental decibel limits apply (e.g., <75 dB), THEN specify a helical system immediately.

  2. Criteria 2 (Budget & Load): IF your upfront purchasing budget remains incredibly tight, axial housing space is highly constrained, AND speeds stay safely below 1000 RPM, THEN default to a standard spur gear.

  3. Criteria 3 (Axis Configuration): IF you are actively replacing complex servo and planetary setups, CONSIDER a helical unit. It provides a significantly wider output ratio range without ever adding vulnerable mechanical planetary stages.

Next-Step Actions

Take concrete next steps to validate your engineering choice. First, rigorously calculate the exact required load distribution across your gear teeth. Second, thoroughly verify your available axial housing space to ensure thrust bearings fit comfortably. Finally, audit your projected long-term energy expenses. A mere 1.5% transmission efficiency gain in a 24/7 heavy industrial application easily offsets the 30% thrust bearing price premium within mere months.

Conclusion

Selecting the optimal power transmission component dictates your long-term operational success. Here are the most critical engineering takeaways for your upcoming project:

  • Helical designs represent the undisputed engineering standard for high-speed, high-torque industrial applications.

  • They effectively eliminate the severe mechanical vibration and auditory noise typically associated with standard spur gears.

  • You must proactively account for a 15% to 25% increase in structural axial space to fit mandatory thrust bearings safely.

  • Initial component costs run higher, but continuous energy efficiency gains quickly bridge the financial gap.

Achieving a 99.5% efficiency rating and a decade-long mechanical lifespan demands absolute precision. You must ensure perfect parallel shaft alignment. You also must integrate robust thrust bearings and utilize high-grade EP lubricants. Do not cut critical corners during final installation. We strongly encourage you to contact an engineering sales team today. Provide your specific RPM targets, peak torque values, and strict dimensional requirements. They will help you configure custom component sizing and analyze your expected operational energy savings.

FAQ

Q: Can a helical gear motor replace a planetary gearhead on a servo motor?

A: Yes. It often provides far greater installation flexibility. You also gain a much wider output ratio range without adding complex mechanical stages. However, planetary gearheads remain technically superior if your specific application demands absolute zero-backlash performance.

Q: What is a double helical (herringbone) gear, and do I need it?

A: A double helical gear uses two opposing helix angles to cancel out axial thrust internally. It completely removes the need for external thrust bearings. However, it is significantly more expensive to manufacture and requires extreme alignment precision. You should only specify herringbone gears for ultra-heavy industrial loads, like massive cement mills.

Q: How much efficiency is lost to sliding friction in a helical gear?

A: The efficiency loss is surprisingly minimal. Despite the inherent sliding friction, a well-lubricated setup readily retains 98.0% to 99.5% efficiency per mechanical stage. This high energy retention makes it highly viable and economically effective for continuous-duty industrial operations.
