Industrial conveyor systems often operate 24/7. In these demanding environments, incremental losses in drive efficiency quickly compound into significant operational challenges. Facility managers need reliable power transmission to keep production lines moving flawlessly. Traditional drive choices, like standard worm gearboxes, frequently struggle under continuous heavy loads. They suffer from high thermal losses and premature mechanical wear. This degradation leads to unexpected downtime and inflated maintenance burdens.

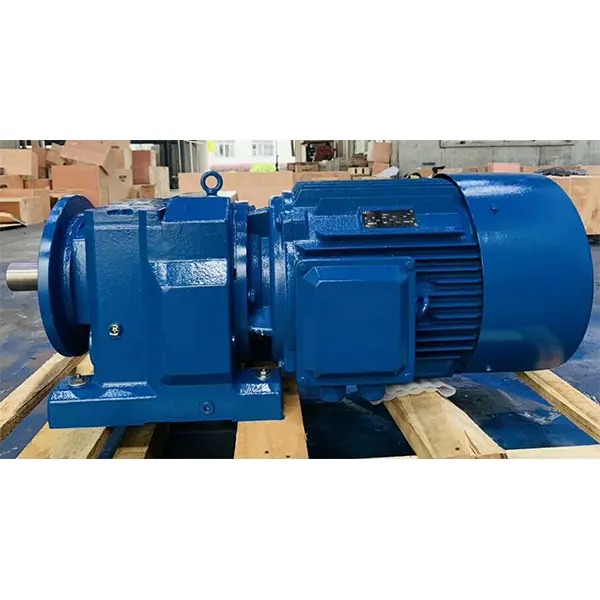

Enter the Helical gear motor as a high-efficiency alternative. Engineers specifically design these robust motors to optimize power transmission. They drastically reduce energy consumption while maintaining peak performance. They easily withstand the most rigorous industrial environments imaginable. This comprehensive guide evaluates the core mechanical advantages of helical drives. You will discover precise selection criteria for seamless conveyor integration. We will explore exactly how making this strategic switch improves overall operational reliability across your facility.
Helical gear motors routinely deliver 95–98% mechanical efficiency, significantly outperforming traditional worm gear drives in continuous conveyor applications.
The gradual tooth engagement of helical gears facilitates higher load capacities and smoother operation, directly reducing sudden shock-load failures.
Transitioning to helical drives supports broader ESG (Environmental, Social, and Governance) and sustainability goals through measurable energy reduction and lower lubricant leakage risks.
Proper sizing requires calculating beyond base horsepower, factoring in AGMA service factors, operational duty cycles, and specific conveyor load profiles.
When you upgrade conveyor components, fundamental mechanical principles dictate real-world performance. A modern Helical gear motor operates differently than spur or worm alternatives. We must examine these precise mechanical differences to understand their massive efficiency gains.
Spur gears feature completely straight teeth. They engage all at once across their entire face width. This abrupt contact creates significant impact stress on the gear shafts. It also generates considerable noise at high rotational speeds. Conversely, helical gears feature teeth cut at a precise angle to the gear face. This unique geometry allows for a highly gradual tooth engagement process.
As a helical gear rotates, contact begins at one end of a single tooth. It gradually sweeps across the face as rotation continues. This continuous, multi-tooth contact maximizes the overall contact ratio. Multiple teeth share the mechanical load simultaneously. They distribute stress evenly across the entire gear train. This smooth transfer of power directly translates to much higher torque capacity. It minimizes vibration across the surrounding conveyor structure.
Mechanical efficiency measures how much input power actually reaches the output shaft. Traditional worm gearboxes suffer heavily from inherent sliding friction. The steel worm shaft literally slides against the bronze wheel teeth. This sliding friction generates massive amounts of heat. Efficiency for a worm drive often drops between 50% and 80%, depending heavily on the specific gear ratio.
A Helical gear motor relies entirely on rolling friction instead. The smooth rolling action minimizes energy lost to heat. Standard mechanical efficiency metrics typically exceed 95% per single gear stage. A standard two-stage helical gearbox routinely achieves up to 96% overall efficiency. This stark contrast highlights why progressive industrial facilities are abandoning legacy worm drives.
Transparency remains vital when evaluating any drive technology. The angled teeth of a helical gear motor inherently generate axial thrust. This thrust force pushes laterally along the gear shaft during operation. If engineers leave this unmanaged, it could easily cause premature bearing failure.
However, modern manufacturing designs easily overcome this mechanical challenge. Manufacturers integrate heavy-duty tapered roller bearings into the gear housing. These specialized bearings absorb and completely neutralize lateral axial forces. Sometimes engineers utilize double-helical (herringbone) gears to cancel out thrust forces entirely. They ensure operational reliability is never sacrificed for the sake of efficiency.
Drive Technology | Tooth Engagement | Primary Friction Type | Average Efficiency | Heat Generation |
|---|---|---|---|---|
Helical Gear Motor | Gradual, multi-tooth contact | Rolling Friction | 95% - 98% | Very Low |
Standard Worm Gearbox | Continuous sliding contact | Sliding Friction | 50% - 80% | Very High |
Standard Spur Gearbox | Abrupt, single-tooth contact | Rolling Friction | 90% - 95% | Low (but noisy) |
Industrial conveyor systems present incredibly unique operational challenges. They demand robust, uncompromising solutions. Let us deeply examine how a highly optimized drive addresses your daily operational pain points.
Bulk material handling conveyors frequently stop while fully loaded. Restarting these heavy belts requires immense breakaway torque. A standard drive might easily stall or quickly trip an electrical overload sensor. The motor must overcome intense static friction across hundreds of steel idler rollers.
Helical designs manage this high starting torque exceptionally well. The multi-tooth engagement safely spreads the extreme breakaway forces. You actively avoid shearing gear teeth during sudden, violent starts. They reliably deliver the raw rotational force required to move heavy stagnant loads. This capability prevents costly production bottlenecks on the factory floor.
Continuous-duty cycles inevitably generate heat. If a drive unit overheats, internal lubricants break down rapidly. This degradation accelerates dangerous metal-to-metal wear. As mentioned earlier, worm gearboxes convert a large portion of electrical input energy into waste heat. Facility managers often must install expensive auxiliary cooling fans or external heat exchangers to compensate.
Because a Helical gear motor achieves such high mechanical efficiency, it generates very little waste heat. The cast-iron housing dissipates this minimal thermal energy naturally. You rarely need auxiliary cooling systems or complex thermal sensors. The synthetic oil stays safely within its optimal temperature range. This protects the internal metal components during endless continuous operation.
Industrial workplace noise causes severe worker fatigue over time. It also creates immediate regulatory compliance risks. Straight spur gears whine loudly under heavy industrial loads. Their abrupt tooth engagement sends powerful acoustic waves echoing through the factory.
Smoother gear meshing critically lowers decibel output. The gradual sweeping action of helical teeth practically eliminates the aggressive clatter. Facilities more easily meet strict OSHA noise compliance standards when they utilize these specific drives. A quieter workplace vastly improves team communication. It ultimately protects valuable employee hearing over the long term.
Modern industrial facilities heavily prioritize sustainability and green operations. You must look beyond isolated component metrics. Upgraded, highly efficient drives positively impact the entire plant energy ecosystem.
Plant engineers often focus solely on the faceplate motor rating. However, true system-level energy consumption matters significantly more. A highly efficient helical gearbox demands far less mechanical effort from the attached electric motor. Consequently, the motor draws much less electrical current from the grid.
This drastically reduces the overall electrical load on your entire facility. Sometimes, these massive efficiency gains allow you to specify a physically smaller motor altogether. A 15-horsepower Helical gear motor might perform the exact same work as a 20-horsepower worm drive. These system-level energy reductions accumulate remarkably fast across dozens of active conveyors.
Connecting physical energy draw to corporate carbon footprint reduction is critical today. Less electricity consumed directly equals fewer greenhouse gases emitted globally.
Transitioning your conveyor lines supports ESG initiatives smoothly and measurably:
Energy Consumption: Measurable, verifiable decreases in daily kilowatt-hour usage.
Emissions Tracking: Documented, transparent reductions in Scope 2 carbon emissions.
Corporate Reporting: Improved corporate sustainability data for shareholders and stakeholders.
Grid Reliance: Lower peak electrical demand during heavily taxed production hours.
True sustainability also means actively preventing physical pollution. Industrial gear oil severely harms the local environment if spilled. Traditional gearboxes operating at extreme temperatures degrade their rubber seals very quickly.
Modern helical gear motor housing designs minimize these environmental risks. Cool operation preserves the integrity of vital shaft seals. High-quality synthetic lubricants last much longer without chemically breaking down. This effectively minimizes oil degradation and drastically reduces lubricant leakage risks. Sustainable manufacturing requires exceptionally clean, leak-free operation on the plant floor.
Theoretical gear efficiency means absolutely nothing without proper physical sizing. You must carefully specify the right drive for your exact operational context. We strongly recommend utilizing a structured, data-driven evaluation framework.
Never rely solely on a steady-state horsepower rating. A smoothly running conveyor needs far less power than a starting conveyor. You must calculate the exact required output torque first.
Determine the maximum belt speed required by your process. Then, calculate the precise internal gear ratio needed to achieve it. A well-selected Helical gear motor aligns its optimal torque curve flawlessly with your load profile. Avoid the very common mistake of blindly copying existing legacy equipment specifications.
The American Gear Manufacturers Association (AGMA) provides critical engineering guidelines. AGMA service factors intelligently adjust your selection based on operational harshness. They account for destructive variables well beyond steady running states.
You must adjust your final selection based on these primary factors:
Shock Loads: Heavy mined rock falling onto a belt causes severe mechanical torque spikes.
Duty Cycles: A standard 10-hour shift differs vastly from a punishing 24-hour continuous run.
Start/Stop Frequency: Frequent cycling strains internal gears heavily and wears contact points.
If your specific conveyor experiences moderate shock loads 24 hours a day, you might properly apply a 1.50 service factor. This numerical multiplier ensures the internal gearing remains robust enough to survive harsh realities.
Physical integration options matter greatly during installation. Rigid space constraints often dictate the ultimate drive style. Evaluate your conveyor's physical structural framework very carefully.
Inline helical drives offer a delightfully slim profile strictly along the motor axis. Parallel shaft units provide extremely high torque in a surprisingly flat, compact footprint. Right-angle helical-bevel designs safely save enormous space directly beside the conveyor frame. Choose the exact configuration matching your crowded facility layout. Furthermore, ensure the heavy-duty mounting handles the extreme overhung loads generated by large pulleys and chain sprockets.
Upgrading your facility to a helical gear motor represents a highly strategic engineering decision. It securely locks in operational reliability while simultaneously reducing massive energy waste. The gradual tooth engagement provides truly unmatched durability under heavy conveyor loads.
Remember, achieving theoretical efficiency always requires accurate system sizing. You must carefully match precise gear ratios and apply proper AGMA service factors without fail. Account for your specific environmental conditions to aggressively prevent premature mechanical failure.
Take the proactive next step toward a fully optimized production line. Download specialized technical CAD models to verify your physical layout. Consult with an experienced application engineer to thoroughly review your specific conveyor load data. Precision engineering ensures your valuable material handling systems run continuously, safely, and flawlessly.
A: A helical gear motor routinely achieves 95% to 98% mechanical efficiency. In stark contrast, standard worm gearboxes often run between 50% and 80% efficiency. This massive gap widens even further at higher gear ratios, where traditional worm drives lose excessive energy to sliding friction and heat generation.
A: Yes, retrofitting is highly feasible and extremely common. You must carefully verify the existing mounting footprints and exact shaft dimensions. You may also need to integrate a variable frequency drive (VFD) to perfectly match the new output speed to your existing conveyor belt speeds.
A: When properly sized with correct AGMA service factors, they offer exceptional physical longevity. You can typically expect tens of thousands of reliable operating hours. Adhering strictly to routine lubrication schedules and avoiding unaccounted shock loads maximizes this lifespan significantly.
A: Despite their complex internal engineering, they do not require difficult or specialized maintenance. Standard upkeep primarily involves routine oil analysis. You simply perform fluid changes according to the manufacturer's specified intervals and periodically inspect external housing seals for optimal integrity.
