The Ultimate Guide To Industrial Helical Bevel Gear Reducers for Heavy-Duty Applications

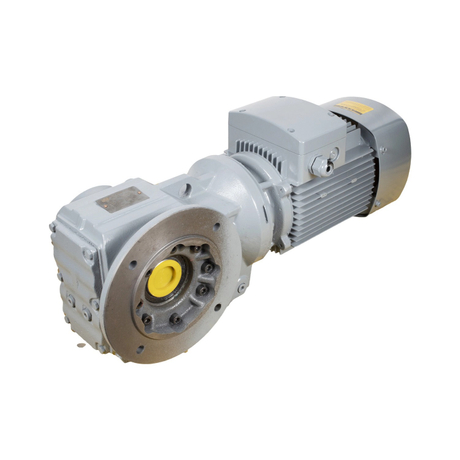

Drivetrain failures in heavy-duty operations carry incredibly high stakes. In sectors like mining, conveyors, and bulk material handling, every minute of unplanned downtime translates directly to massive revenue losses. Equipment must function flawlessly under extreme mechanical stress. Engineers frequently face a difficult compromise. They must navigate tight spatial constraints requiring right-angle drives while demanding high-efficiency, high-torque power transmission. Many standard gearboxes simply cannot handle both requirements simultaneously without rapid deterioration. An Industrial Helical Bevel Gear Reducer provides the optimal solution. It minimizes energy loss while maximizing load-carrying capacity in harsh environments. In this guide, you will learn how to evaluate, specify, and source the exact unit your application demands.

Key Takeaways

  • Helical bevel designs deliver up to 94–98% energy efficiency, significantly outperforming traditional worm gearboxes in high-torque applications.

  • Proper specification requires balancing mechanical ratings (torque, shock loads) with thermal capacities to prevent premature failure.

  • Lifecycle reliability is dictated less by the initial purchase price and more by housing durability, sealing technologies, and ease of predictive maintenance.

  • Selecting the right service factor based on specific heavy-duty application profiles is non-negotiable for long-term reliability.

The Engineering Case for Helical Bevel Configurations in Heavy-Duty Environments

Heavy machinery demands reliable power transfer. Space limitations often force engineers into right-angle layouts. You cannot afford to sacrifice efficiency in these applications. You also cannot allow extreme shock loads to destroy the gearbox. This engineering dilemma requires a highly specific mechanical architecture to ensure long-term survival.

Straight bevel gears intersect at 90 degrees, generating excessive noise. They wear down quickly at high rotational speeds. This makes them highly unsuitable for continuous heavy-duty cycles. By contrast, an Industrial Helical Bevel Gear Reducer integrates helical input stages and spiral bevel output stages. This intelligent combination optimizes load distribution across multiple gear teeth simultaneously. It ensures smoother engagement. You achieve quieter operation and exponentially higher durability.

Gear Architecture

Load Capacity

Energy Efficiency

Noise Profile

Ideal Application

Straight Bevel

Low to Moderate

~90%

High

Low-speed, light-duty indexing

Standard Worm

Moderate

50% - 80%

Low

Low-cost, self-locking hoists

Helical-Bevel Combo

Extremely High

94% - 98%

Very Low

Continuous heavy-duty conveyors

Why abandon traditional worm gears? Worm drives rely heavily on sliding friction. This friction generates massive heat. It drastically lowers mechanical efficiency, often dropping below 70%. Replacing them recovers tremendous energy costs over time. The helical-bevel design utilizes rolling friction instead. It runs cooler and transmits torque much more effectively. This shift eliminates the thermal bottlenecks common in bottom-of-funnel sizing scenarios.

Core Evaluation Criteria for Industrial Helical Bevel Gear Reducers

Do not simply read spec-sheet numbers. You must translate those figures into operational reliability. We will guide you through translating raw metrics into real-world performance expectations.

Torque Density & Overhung Load Capacity

You must understand continuous versus peak torque thresholds. Continuous torque defines what the unit handles safely around the clock. Peak torque handles momentary spikes during system startup or mechanical jams. Do not size your unit based only on continuous limits. Look closely at overhung load capacity. Pulleys and heavy drive belts exert tremendous side-pull on the shaft. This pull represents the radial force. Robust tapered roller bearing configurations are necessary to absorb these forces. If bearings are undersized, the shaft deflects. Deflection shreds internal oil seals rapidly.

Transmission Efficiency & Thermal Ratings

Mechanical rating indicates raw gear strength. Thermal rating dictates heat dissipation capability. High mechanical strength means nothing if the unit overheats constantly. An Industrial Helical Bevel Gear Reducer often possesses a mechanical rating far exceeding its thermal limit. Enclosed spaces trap heat rapidly. When ambient temperatures rise, auxiliary cooling systems become mandatory. You will likely need shaft-driven fans or liquid heat exchangers to maintain safe oil viscosity.

Housing & Material Metallurgy

Housing material dictates survival in aggressive environments. Standard cast iron offers excellent vibration dampening. It absorbs resonant frequencies effectively. However, specialized alloy housings provide much higher structural rigidity. They resist fracture under extreme shock loads. Evaluate your specific environment carefully. High-impact rock crushers require ductile iron or steel alloys. Standard material conveyors may perform perfectly well utilizing gray cast iron.

Blueprinting the Sizing and Selection Process

Match the reducer to the exact application. Follow a structured, compliance-aware methodology. Guesswork during the selection phase guarantees catastrophic failure later.

Calculating the Correct Service Factor (SF)

Service factors determine necessary design margins. The American Gear Manufacturers Association (AGMA) sets these critical benchmarks. You must calculate them accurately based on actual duty cycles.

Follow these standard service factor adjustments:

  1. Uniform Loads (SF 1.0 - 1.15): Applies to lightweight centrifugal pumps and continuously running light conveyors.

  2. Moderate Shock Loads (SF 1.25 - 1.50): Necessary for industrial agitators, large mixers, and heavy-duty bucket elevators.

  3. Heavy Shock Loads (SF 1.75 - 2.0+): Mandatory for mining rock crushers, metal shredders, and vibrating screens.

  4. Continuous Duty: Always add 0.25 to the base service factor if the machine runs 24/7 without rest periods.

Speed, Ratios, and Inverter Compatibility

Target exact gear ratios carefully. Over-sizing wastes capital. Under-sizing guarantees immediate failure. Many modern systems integrate Variable Frequency Drives (VFDs). VFDs allow precise process speed control. However, running a gearbox at very low RPMs introduces severe risk. Standard splash lubrication often fails at low speeds. Oil cannot splash high enough to reach upper bearings. If you integrate VFDs, you must install forced lubrication systems.

Implementation Realities: Mitigating Risk in High-Stakes Deployments

Installation quality dictates operational lifespan. Field deployments often reveal hidden system flaws. We see many avoidable failures occurring in harsh industrial environments.

Sealing Technologies and Contamination Control

Dust and moisture destroy internal components rapidly. Standard seals fail quickly in mining or bulk handling applications. You must upgrade your sealing technologies immediately. Labyrinth seals provide excellent non-contact protection. They block heavy particulate ingress effectively. Dual-lip seals prevent oil leakage while keeping moisture out. In high-humidity zones, desiccant breathers are absolutely vital. They stop ambient moisture from contaminating the gear oil.

Operating Environment

Primary Threat

Recommended Seal Technology

Clean Manufacturing

Minor dust

Standard single-lip NBR seal

Outdoor Conveyors

Rain and temperature swings

Dual-lip FKM seal + desiccant breather

Mining & Aggregates

Abrasive silica dust

Taconite labyrinth seal + grease purge

Alignment Tolerances and Foundation Rigidity

Perfect engineering cannot fix poor installation practices. Soft foot conditions plague heavy machinery deployments. This occurs when equipment does not sit perfectly flat on its mounting base. Tightening the mounting bolts distorts the gearbox housing. This distortion causes severe internal shaft misalignment. Misalignment places uneven stress on gear teeth. It guarantees premature bearing failure. You must ensure absolute foundation rigidity. Always use precise laser alignment tools during commissioning.

Lubrication Regimes & Predictive Maintenance

Reactive maintenance costs too much money. You cannot wait for a catastrophic breakdown. Transition to predictive maintenance protocols immediately. Integrate advanced vibration sensors directly onto bearing housings. They detect micro-spalling long before total failure occurs. Implement scheduled oil analysis programs. Oil samples reveal distinct metal wear patterns. High iron content warns of gear face wear. Clean, cool oil keeps an Industrial Helical Bevel Gear Reducer running efficiently for decades.

Shortlisting Vendors and Assessing Lifecycle Value

Product specifications only tell half the story. You must evaluate overall supplier viability. Look far beyond the initial purchase price to understand true long-term value.

Modularity and Aftermarket Support

Modular designs save significant money over time. Interchangeable motor flanges offer incredible engineering flexibility. Standardized shaft sizes reduce your required spare parts inventory. You do not need to stock entire heavy-duty gearboxes on shelves. You can stock standardized sub-components instead. This strategy drastically lowers warehousing costs and simplifies repairs.

Lead Times vs. Customization

Bespoke engineered solutions fit unique applications perfectly. However, they carry massive manufacturing lead times. A customized housing might take twenty weeks to arrive. Standardized units allow for rapid emergency replacement. Balance your desire for custom features against replacement urgency. Often, a standard unit utilizing specific modular adapters works best.

Warranty and Lifecycle Guarantees

Read the vendor performance guarantee closely. Vendors must state transparent assumptions regarding acceptable operating conditions. A warranty means nothing if it voids under normal heavy-duty shock loads. Demand clarity on L10 bearing life expectations. Ensure the vendor supports active field diagnostics and rapid troubleshooting.

Conclusion

  • An Industrial Helical Bevel Gear Reducer represents a critical infrastructure investment. Treat it as the heart of your heavy-duty drivetrain, never as a cheap commodity component.

  • Conduct a rigorous localized application audit. Measure your exact continuous loads, peak shock loads, and actual ambient temperatures before making a selection.

  • Prioritize advanced sealing technologies and forced lubrication systems if your equipment operates in highly contaminated environments or utilizes VFDs.

  • Consult directly with a qualified application engineer to verify AGMA service factor calculations before issuing any final purchase orders.

FAQ

Q: What is the average efficiency of an industrial helical bevel gear reducer compared to a worm gearbox?

A: A helical bevel design consistently achieves 94% to 98% efficiency. In stark contrast, traditional worm gearboxes typically offer 50% to 80% efficiency, depending heavily on the ratio and temperature. The rolling friction of helical-bevel gears drastically reduces heat generation and energy waste compared to the sliding friction found in worm drives.

Q: How do I determine if my application requires an upgraded thermal rating?

A: You need an upgraded thermal rating if your equipment operates continuously without adequate ambient airflow. High ambient temperatures, tightly enclosed spaces, and 24/7 duty cycles trap heat rapidly. If calculated thermal horsepower falls below transmitted mechanical horsepower, you must install auxiliary cooling like shaft-driven fans or liquid heat exchangers.

Q: Can a helical bevel gearbox be back-driven?

A: Yes, they can typically be back-driven. Unlike high-ratio worm gears, helical bevel units are not inherently self-locking. Their extremely high efficiency allows rotational forces to travel backward easily through the drivetrain. If your application involves lifting or inclined conveyors, you must integrate external mechanical brakes to prevent dangerous load rollback.

Q: What is the standard lifespan of a heavy-duty helical bevel reducer?

A: Lifespan depends entirely on accurate sizing and strict maintenance. High-quality units designed to AGMA standards often exceed 50,000 hours of continuous operation. Achieving this requires adherence to precise L10 bearing life specifications, proper service factor calculations, and rigorous predictive maintenance like routine oil analysis.
