Upgrading industrial facilities often presents a frustrating spatial puzzle. Engineers must squeeze heavy machinery into shrinking floor plans. Delivering massive power in tight spaces requires innovative mechanical solutions. Traditional inline gearboxes simply demand too much linear space. Standard right-angle worm gears fit spatial constraints but suffer from high sliding friction and substantial power loss. This tradeoff forces facilities to compromise layout efficiency or power transfer. You will discover how the Industrial Helical Bevel Gear Reducer resolves this dilemma perfectly. We will explore the mechanics behind its torque density, right-angle architecture, and exceptional energy efficiency. Read on to master the framework for evaluating, sizing, and specifying these units for your heavy-duty applications.
Efficiency: Helical bevel gear reducers operate at 94–98% efficiency, significantly lowering energy consumption and thermal output compared to traditional worm gears.
Torque Density: The multi-stage meshing design allows for massive torque output in a compact, right-angle footprint, ideal for heavy-duty conveyors and crushers.
Implementation Sizing: Proper selection requires rigorous evaluation of service factors, overhung loads, and thermal capacities, not just base horsepower.

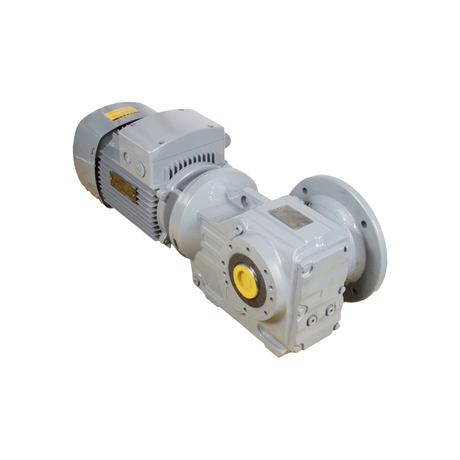

To understand the performance advantages, we must examine the internal mechanics. An industrial gearbox utilizes a multi-stage gear train to multiply torque. The first stage typically features helical gears. These gears feed rotational energy into right-angle bevel gears. The angled teeth engage gradually. They spread the load across multiple teeth simultaneously. This gradual meshing prevents jarring impacts. It guarantees smooth, continuous power transfer under immense loads.
Next, we look at friction. Traditional worm gears rely heavily on sliding friction. The worm shaft grinds against the wheel surface constantly. This creates massive heat. Conversely, helical bevel setups utilize rolling friction. The involute gear profile allows the tooth surfaces to roll through the mesh. This distinct geometry minimizes the sliding action. Rolling contact drastically reduces mechanical resistance. Lower resistance translates directly to reduced heat generation. You save energy otherwise lost to thermal dissipation.
The spiral bevel teeth engage gradually from one end to the other. This sweeping engagement absorbs shock loads easily. It also drastically reduces operational noise compared to straight bevel gears. Compact architecture forms another distinct advantage. The 90-degree shaft orientation is a spatial game-changer. It allows you to mount the motor parallel to the driven machine. Inline gearboxes stretch far outward. They consume valuable aisle space. Right-angle units tuck neatly alongside the equipment. Tight conveyor belts and complex mixing setups benefit immensely. You gain walkable space and easier maintenance access.
Choosing between these two right-angle options requires careful analysis. Worm gears generally offer a cheaper upfront price tag. However, relying purely on initial cost is a mistake. High-efficiency right-angle gearboxes pay for themselves rapidly through energy savings. Energy savings accumulate month after month. Heavy-duty applications consume immense electricity. Upgrading from a 60% efficient worm gear to a 95% efficient Industrial Helical Bevel Gear Reducer slashes your facility power bills.
Efficiency drop-off is another critical factor. Worm gears lose extreme amounts of efficiency at higher reduction ratios. A 100:1 worm gear might operate below 60% efficiency. The remaining 40% of input power turns entirely into heat. Helical bevel units perform entirely differently. They maintain 90% to 98% efficiency regardless of the reduction ratio.
Reduction Ratio | Standard Worm Gear Efficiency | Helical Bevel Gear Reducer Efficiency |
|---|---|---|
10:1 | 85% - 90% | 96% - 98% |
50:1 | 70% - 75% | 95% - 97% |
100:1 | 50% - 60% | 94% - 96% |
Thermal limitations further separate these two technologies. Continuous heavy-duty applications generate heat. A worm gearbox traps this heat inside the housing. Continuous operation often overheats standard worm units. They require frequent cooldown periods or massive external fans. Helical bevels dissipate heat effectively due to lower friction. They easily handle continuous 24/7 operations in steel mills or mining facilities.
Finally, you must address back-driving and self-locking capabilities. Worm gears often self-lock at high ratios. The load cannot drive the motor backward. Helical bevels do not self-lock. They will back-drive freely. Safety relies entirely on this distinction. Lifting applications require external braking systems. If a power failure occurs, an unbraked helical bevel hoist will drop its payload. Always integrate mechanical brakes for lifting hazards.
Selecting the right unit demands strict attention to technical criteria. Base horsepower alone tells an incomplete story. You must conduct a thorough service factor analysis. Standards set by AGMA and ISO guide this critical process. A service factor accounts for hidden operational stress.
Follow these steps to evaluate your application:
Assess Shock Loads: Determine if the machinery experiences sudden jams or heavy impacts. Rock crushers require high service factors.
Check Operation Cycles: Continuous duty cycles demand larger service factors than intermittent operations.
Count Start/Stop Frequencies: Frequent motor starts create severe torque spikes. High start frequencies necessitate stronger gearing.
Next, focus on torque density and Overhung Load (OHL). Output shafts endure immense forces. Sprockets, pulleys, and heavy agitators exert radial and axial loads. You must size the bearings appropriately. An undersized bearing will shatter under heavy radial pull. The location of the applied load matters immensely. A pulley mounted close to the gearbox housing creates a smaller bending moment. A pulley mounted at the far end acts like a crowbar. It multiplies the radial force against the internal bearings.
You must apply a load connection factor. Chain sprockets require a factor of 1.0. V-belts often require a factor of 1.5 due to high belt tension. Multiply your calculated radial load by this connection factor. Compare the final number against the manufacturer's allowable OHL curve.
Thermal capacity presents another crucial hurdle. Compact units pack massive mechanical power into tiny housings. The gearbox might hit its thermal limit before its mechanical limit. The gears can handle the physical torque, but the oil boils. When thermal ratings fall below mechanical ratings, specify auxiliary cooling. Shaft-driven cooling fans or external oil coolers solve this issue effectively.
Lastly, evaluate sealing and ingress protection. Heavy machinery operates in hostile environments. Cement plants generate highly abrasive dust. Food processing plants utilize high-pressure chemical washdowns. Standard oil seals fail quickly under these conditions. Specify labyrinth seals for severe dust exposure. Use double-lip fluorocarbon seals for liquid washdown environments.
Installing these gearboxes involves several practical challenges. Mounting configurations dictate future maintenance efforts. Solid shaft setups rely on traditional keys and keyways. They function well but suffer under reversing loads. Flange mounting offers rigid stability for vertical agitators. However, hollow shafts offer distinct advantages in tight spaces.
Hollow shafts utilizing shrink discs create a 360-degree friction fit. This completely eliminates the keyway. Mechanical backlash disappears. More importantly, it prevents fretting corrosion. Solid shafts often rust tightly inside the driven machine hub. Removing them requires torches and heavy hydraulic pullers. Shrink discs allow simple, clean removal years later.
Consider these common mounting pitfalls:
Ignoring breather positions: Plugs must be swapped based on final spatial orientation.
Improper torque specs: Shrink disc bolts require exact tightening sequences and a calibrated torque wrench.
Rigid mounting distortion: Uneven steel bases twist the gearbox housing, causing bearing misalignment.
Lubrication dependencies dictate operational lifespans. Oil levels change dramatically based on mounting orientation. A horizontal mount requires less oil than a vertical mount. Overfilling causes severe oil churning. The fast-moving gears whip the oil into a thick foam. Foaming oil cannot lubricate rolling bearing surfaces. Underfilling leaves upper bearings totally dry. Always check the precise oil volume for your specific layout. Ensure vents sit at the highest possible point to release internal pressure.
Alignment tolerances forgive no mechanical errors. Compact, rigid units demand precise motor and payload alignment. Misalignment exerts excessive radial forces. This physically bends the input shaft. Premature bearing failure occurs rapidly. Use modern laser alignment tools during installation. Do not rely on straight edges for high-torque industrial applications.
Purchasing heavy-duty components requires a strategic vendor approach. First, decide between standardization and customization. Modular, off-the-shelf components provide massive supply chain advantages. Fast lead times keep factory production running. You can replace a standard unit in mere days. Engineering a custom gearset takes months. Rely on modular systems whenever possible. Reserve custom gears only for highly specialized extremes.
Standardized units allow you to stock common spare parts. You can keep one spare drive unit that fits five different plant conveyors. This reduces inventory holding burdens. Supply chain stability matters deeply during facility retrofits. Evaluate vendors based strictly on dimensional interchangeability. Upgrading a legacy inline drive requires costly engineering changes. However, many vendors design right-angle units as exact drop-in replacements for older setups.
Vendor Capability | Why It Matters | What to Request |
|---|---|---|
Dimensional Interchangeability | Reduces installation downtime during plant retrofits. | CAD models and physical footprint dimensions. |
Material Traceability | Ensures gear alloy purity and long-term durability. | Material certificates and heat-treatment reports. |
Testing Protocols | Validates mechanical and thermal capacity claims. | Factory load test certificates prior to shipment. |
Matching shaft heights and bolt patterns minimizes machinery downtime. It completely eliminates the need to weld new steel base plates. Even a millimeter of difference requires shimming. Proper shims prevent soft-foot conditions. Always demand verifiable performance data. Trustworthy vendors supply load test certificates gladly. Ask for material traceability documents. Clear, accessible maintenance manuals indicate a highly reliable partner. Ensure they offer local spare parts support. A great gearbox loses its value immediately if replacement bearings sit an ocean away.
Specifying a heavy-duty right-angle drive represents a major capital investment. It is thoroughly justified by operational efficiency and spatial economy. Upgrading away from inefficient friction-based systems protects your monthly energy budget. Embracing a compact layout actively reclaims valuable facility floor space.
Take immediate action by auditing your current right-angle drives. Identify older units suffering from excessive heat generation. Calculate the exact service factors required for your worst-case operational loads. Consult directly with application engineers to verify overhung load ratings and thermal limits. Rigorous evaluation guarantees your machinery runs continuously, safely, and highly efficiently for years.
A: It utilizes rolling friction between gear teeth rather than the high-friction sliding action inherent in a worm gear's design. This rolling contact minimizes mechanical resistance, thereby drastically minimizing the power lost as heat during operation.
A: Yes, mechanically they can be back-driven. However, utilizing them as speed increasers requires highly specific engineering checks for lubrication, bearing load, and maximum speed limits. It is not recommended without explicit manufacturer approval.
A: Generally, the first oil change occurs after 500 operating hours to remove initial break-in particles. This is followed by routine intervals of 10,000 to 25,000 hours. The exact timeframe depends heavily on the use of mineral versus synthetic lubricants and the ambient operating temperature.
A: While worm gears are extremely quiet due to sliding friction, modern precision-ground helical bevel gears operate at highly acceptable industrial noise levels. They are slightly louder under peak load but remain well within standard workplace safety regulations.
