5 Key Benefits of K Series Helical Bevel Gear Reducers for Material Handling

Material handling operations, including conveyors, hoists, and mixers, demand continuous uptime. They require precise torque control and highly efficient spatial integration. Equipment failure directly impacts operational profitability. Inefficient power transmission slows down entire production lines and drains electrical resources. Facility managers face difficult choices during equipment upgrades. Standard worm drives often prioritize low initial procurement costs. However, this basic approach ignores severe long-term energy waste. Frequent maintenance needs also plague cheaper drive alternatives. Upgrading gear mechanisms remains essential to keep modern facilities competitive.

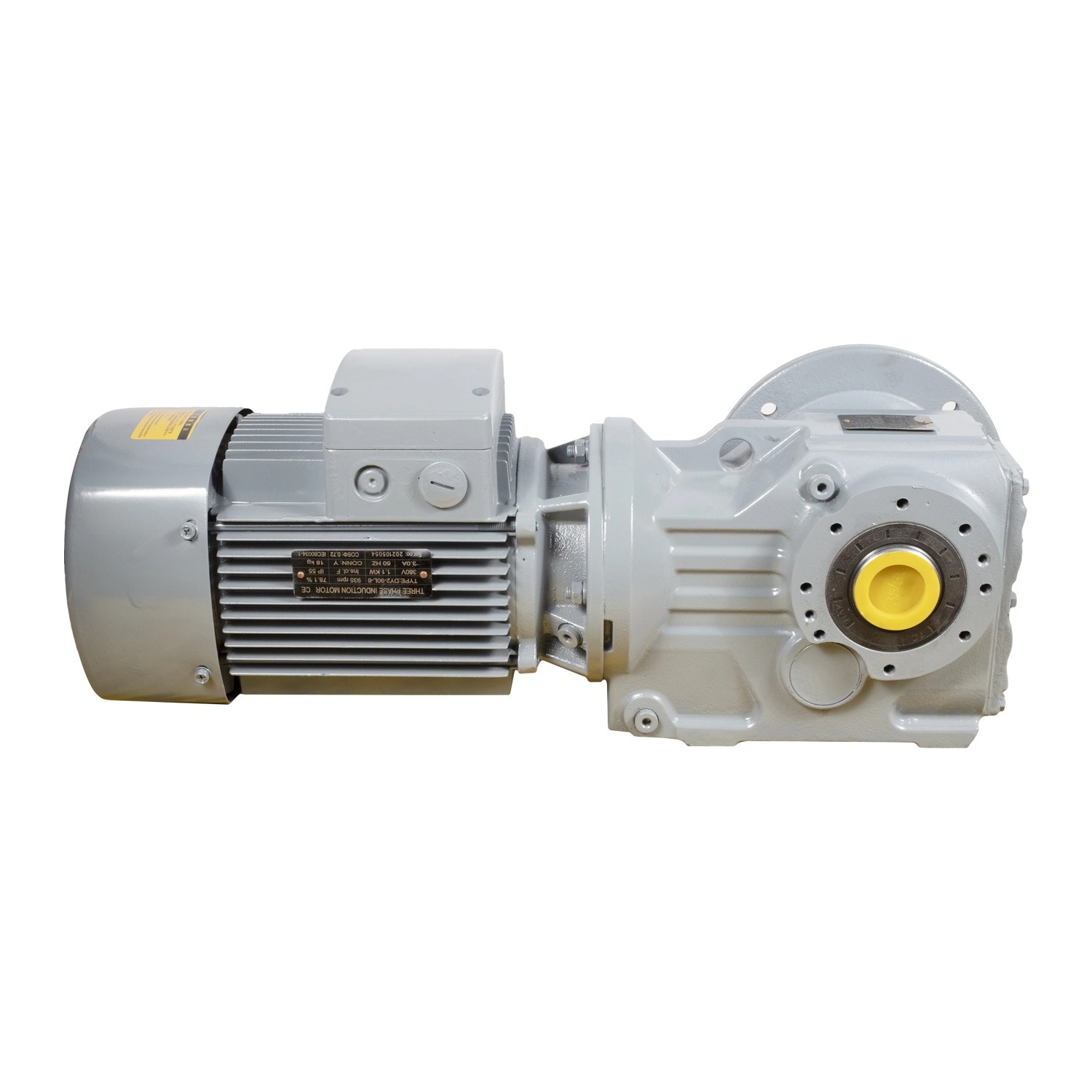

The K Series Industrial Helical Bevel Gear Reducer merges highly specific engineering principles. It successfully combines the gradual tooth engagement of helical gears and the 90-degree directional change of bevel gears. Implementing these K Series reducers provides distinct, measurable advantages. You gain massive improvements in mechanical efficiency, load capacity, and lifecycle durability. In this comprehensive guide, you will discover exactly why this technology stands out. It represents the superior choice for continuous, heavy-duty material handling applications.

Key Takeaways

  • Energy ROI: Pure rolling contact delivers up to 95–96% transmission efficiency, significantly lowering electricity costs compared to sliding-friction worm gears.

  • Heavy-Duty Endurance: Carburized and quenched gears (HRC60+ hardness) withstand the high shock loads typical in continuous material handling duty cycles.

  • Space-Efficient Integration: Right-angle configurations combined with NEMA compatibility allow for seamless drop-in replacements in constrained plant layouts.

  • Objective Trade-off: While initial procurement costs are higher, the K Series drastically reduces maintenance downtime and thermal wear, yielding a lower Total Cost of Ownership (TCO).

1. Up to 96% Transmission Efficiency: Energy Cost Reduction

Mechanical Principle

Worm gearboxes rely heavily on sliding contact between components. This friction-heavy design inherently loses 10–50% of input power directly to thermal waste. In stark contrast, the K Series utilizes a sophisticated 3-stage pure rolling contact mechanism. Rolling friction generates virtually zero excess heat. Engineers design the helical and bevel gear teeth to roll against one another smoothly. This specific mechanical approach ensures maximum energy transfer from the motor to the output shaft.

Performance Metrics

The pure rolling design achieves consistently high transmission efficiency. Operations typically see efficiency ratings exceeding 95%. This incredible performance holds true even across widely varying speed reduction ratios. Standard worm drives suffer drastic efficiency drops at high reduction ratios. The K Series maintains its 95%+ baseline regardless of the operational speed.

Business Outcome

You capture maximum motor input and convert it directly into usable output torque. Continuous material handling operations consume massive amounts of electricity. In these 24/7 environments, a single-digit efficiency gain compounds significantly over a calendar year. Facilities experience highly measurable reductions in annual energy expenditure. Upgrading to high-efficiency drives fundamentally improves the baseline profitability of your entire plant.

Feature Category

K Series Helical Bevel

Standard S Series Worm Gear

Primary Friction Type

Pure Rolling Contact

Sliding Contact

Typical Efficiency Rating

95% - 96%

50% - 85%

Thermal Energy Waste

Minimal (Cool Operation)

High (Requires frequent cooling)

Performance at High Ratios

Remains consistently high

Drops significantly

Best Practice: Always monitor gearbox surface temperatures during the first week of installation. Establishing a thermal baseline helps you verify that the rolling contact mechanism operates at peak efficiency.

2. Superior Load Capacity for Continuous Duty Cycles

Mechanical Principle

Heavy manufacturing environments ruthlessly punish mechanical components. The K Series handles these extreme demands effortlessly. Manufacturers build these gearboxes using heat-treated alloy steel. The carburizing and quenching processes push the gear surface hardness levels to HRC60 or higher. Additionally, a specialized helical design ensures multiple teeth share the incoming load simultaneously. Broad load distribution actively prevents localized stress fractures on individual gear teeth.

Performance Metrics

These specialized units output massive torque ranges. Certain industrial models can sustain output torque up to 62,800 N.m. Furthermore, robust internal bearings sustain exceptionally high radial and axial forces. They easily support overhung loads from massive conveyor pulleys or heavy chain sprockets.

Business Outcome

This rugged construction prevents sudden mechanical failure during severe shock loading events. Sudden starts on fully loaded aggregate belt conveyors create massive torque spikes. Heavy lifting operations in industrial cranes generate similar mechanical shocks. The K Series absorbs these impacts safely. You drastically reduce unscheduled downtime by eliminating unexpected gear shearing incidents. Protecting your continuous duty cycles ensures steady, uninterrupted revenue generation.

Common Mistake: Facility engineers sometimes rely purely on average running torque calculations. Always factor in peak starting torque and potential jam loads when sizing your gear reducers.

3. Space-Optimized Right-Angle Integration

Mechanical Principle

Plant layouts rarely offer generous installation space. Integrating a specialized bevel gear allows for non-intersecting, perpendicular power transmission. You achieve crucial right-angle functionality without the extreme bulk of traditional multi-stage parallel gearboxes. The compact geometry packs immense power density into a surprisingly small physical footprint.

Installation Reality

The Industrial Helical Bevel Gear Reducer features incredibly high structural rigidity. Heavy-duty cast-iron housings protect the precise internal components. Facilities can utilize highly flexible mounting options. You can specify foot mounts, flange mounts, or specialized torque arm configurations based on your chassis.

Business Outcome

This supreme flexibility solves strict footprint constraints inside dense automated manufacturing lines. Furthermore, universal compatibility with standard NEMA C-face motors makes the K Series an ideal drop-in replacement. You can easily retrofit legacy European R-series units or standard outdated gearboxes. Maintenance teams do not need to redesign the entire existing conveyor chassis. You save significant capital on secondary engineering modifications during plant upgrades.

  • Foot Mounting: Ideal for standalone pump or mixer bases requiring rigid, ground-level anchoring.

  • Flange Mounting: Perfect for direct integration into automated machinery walls or robotic joints.

  • Torque Arm Mounting: Best suited for shaft-mounted conveyor setups, allowing slight movement while preventing rotation.

4. Low-Friction Longevity and Predictable Maintenance

Mechanical Principle

Excessive heat fundamentally destroys mechanical longevity. Eliminating sliding friction drastically reduces the general operating temperature of the entire gearbox. Precise thermal control effectively mitigates the chemical breakdown of internal synthetic lubricants. It also minimizes the physical wear of critical internal components over prolonged operational periods.

Implementation Considerations

Bulk material handling environments aggressively expose equipment to severe contamination. Cement, mining, and grain facilities generate massive amounts of abrasive dust. Superior internal sealing mechanisms protect the delicate rolling components from this debris. High-quality oil seals and labyrinth configurations keep the lubrication clean and the operation smooth.

Business Outcome

These intentional design choices significantly extend the mean time between failures (MTBF). Facilities save considerable capital on replacement parts. You also eliminate the massive labor costs historically associated with frequent oil changes. High-heat sliding alternatives demand constant, aggressive lubrication maintenance. Conversely, the K Series delivers highly predictable, easily manageable upkeep schedules. You free up your maintenance staff to tackle more critical plant optimizations.

Best Practice: Implement routine oil analysis programs every six to eight months. Even the most superior seals eventually face natural degradation in highly extreme industrial environments.

5. Controlled Vibration and Noise Compliance

Mechanical Principle

Workplace safety heavily involves strict occupational noise control. Engineers specifically cut these gears at precise helical angles. They typically range between 15° and 30°. This specific geometric design allows the gear teeth to engage gradually. Standard straight spur gears slam together forcefully, causing immense spikes in noise and wear. The gradual helical engagement entirely prevents these harsh, damaging impacts.

Performance Metrics

Acoustic and vibrational tests reveal noticeable reductions in both decibel output and structural shaking. Heavy load applications operate surprisingly quietly. The smooth rolling action inherently dampens internal resonance before it travels through the cast-iron housing.

Business Outcome

This exceptionally smooth operation directly impacts your surrounding business environment. It heavily supports your compliance with strict occupational noise regulations inside enclosed manufacturing facilities. You protect worker hearing and avoid potential regulatory fines. Furthermore, it prevents vibrational damage to highly sensitive neighboring automation sensors. Modern production lines rely heavily on precise, uninterrupted sensor data. Reducing overarching mechanical vibration protects your expensive automation investments.

Common Mistake: Ignoring structure-borne vibration is dangerous. Always ensure your foundational mounting bases possess sufficient rigidity to prevent unintentional vibration amplification.

Specifying the Right Industrial Helical Bevel Gear Reducer (Evaluation Logic)

Selecting the optimal drive system requires careful, objective evaluation of your specific facility needs. Proper specification ensures you maximize long-term efficiency and prevent costly mismatches.

  1. Conduct a Duty Cycle Analysis: We heavily recommend this gearbox class for continuous 24/7 operations. Highly intermittent or extremely lightweight duties might not justify the initial capital expense. Standard alternative drives might suffice for occasional, light-duty loads. You must calculate your daily run hours to justify the investment.

  2. Evaluate the Braking Trade-off (Back-driving vs. Self-Locking): Some high-ratio worm gears inherently self-lock due to high internal friction. The K Series is entirely different. Its exceptionally high mechanical efficiency makes it fully "back-drivable." It simply cannot generate enough friction to hold a load automatically. Crucial implementation note: If your application requires the load to hold position when power drops, you must specify an external motor brake. Inclined hoists and vertical elevators demand this vital safety addition.

  3. Audit Physical Space and Motor Standards: Begin by strictly evaluating your existing plant motor standards. You must choose accurately between NEMA or IEC interface dimensions. Next, calculate the exact required output torque for your peak load scenarios. Finally, audit your physical machine space to select the exact proper mounting configuration.

Evaluation Step

Primary Question

Recommendation Focus

Duty Cycle

Does the machine run continuously?

If yes, select K Series for energy savings.

Safety Braking

Can the load fall if power cuts?

If yes, add an external fail-safe brake.

Motor Integration

Are you using North American standards?

Specify NEMA C-face input flanges.

Conclusion

The K Series helical bevel gear reducer successfully avoids the frustrating operational compromises found in traditional friction-heavy drives. By leveraging pure rolling contact, robust metallurgical treatments, and intelligent right-angle geometry, it continually delivers maximum torque. It accomplishes these extreme heavy-duty tasks while ensuring minimal energy waste.

Implementing this advanced technology requires a higher upfront equipment investment. It also demands thoughtful, safety-focused brake specification for lifting applications. However, the operational benefits remain absolutely undeniable. Its extreme structural durability and impressive 95%+ running efficiency make it a highly financially sound choice. It outlasts and outperforms traditional units in almost every heavy-duty material handling scenario.

To take the next practical step, consult directly with specialized engineering teams. Run an objective energy efficiency comparison against your facility's current drives. Request specific CAD models to accurately verify drop-in compatibility for your specific conveyor or hoist application. Securing the right drive today guarantees smoother operations tomorrow.

FAQ

Q: What makes an industrial helical bevel gear reducer more efficient than a worm gear reducer?

A: Helical bevel reducers utilize pure rolling contact between the meshing gears. This efficient mechanism generates minimal heat. Conversely, worm gears rely heavily on sliding friction. This constant sliding action can lose a massive percentage of input power to thermal waste, especially at high reduction ratios.

Q: Can the K Series gearboxes self-lock to prevent a load from falling?

A: No. Because of their exceptionally high mechanical efficiency, K Series reducers remain fully back-drivable. They simply do not generate enough friction to hold a load automatically. Applications requiring load holding, like elevators or inclined conveyors, must feature an integrated braking motor.

Q: Are K Series gearboxes compatible with existing NEMA motors?

A: Yes. Most modern K Series models feature standard NEMA C-face inputs. This specific design allows for incredibly easy integration with standard North American industrial motors. It makes retrofitting older plant equipment seamless without requiring you to redesign the entire mounting chassis.

Q: In what scenarios should I avoid using a K Series reducer?

A: You should avoid them in applications featuring severe space constraints that demand extreme equipment miniaturization. They are also less ideal for highly intermittent, low-torque operations. In these light-duty cases, the higher initial capital cost simply outweighs the potential long-term energy savings.
